Product Description

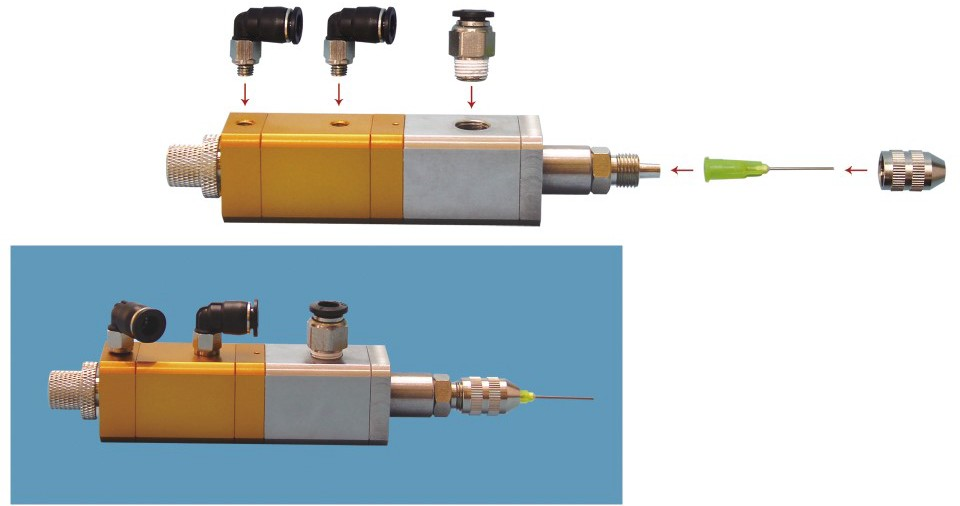

Stainless Steel Back-Suction Valve. A precision valve made of stainless steel, suitable for grease, silicone, solder paste, butter, epoxy resin, etc. with poor fluidity. It has good corrosion resistance and is suitable for high-pressure dispensing. Adopt multiple Teflon seal combination, good suck back force, can stop glue instantly. The front end of the valve can be connected with standard needles.
Product Model
| Model PMN-002PS | |
|---|---|
| Working Pressure | 4-6 bar |
| Minimum Amount | 0.5ml |
| Applicable Viscosity | <100,000 cps |
| Main Material | Stainless steel |
| Feeding Pressure | 1-200 bar |
| Feeding Size | 1/4 inch |
| Working Frequency | <300 times/min |
| Dimensions | 135*30*30 mm |
