Product Description

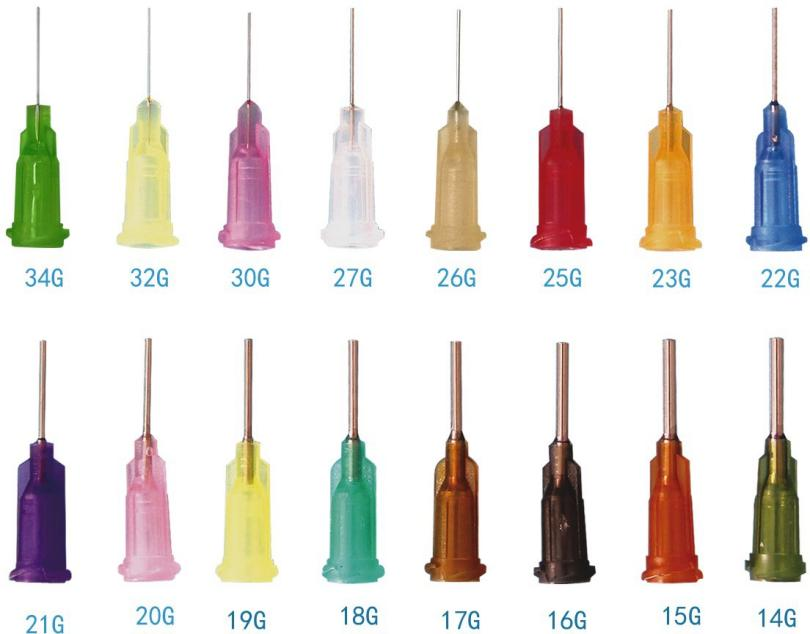

LK Screw Mouth Plastic Steel Needle. YY screw-mouth plastic steel needle; stainless steel needle tube is strictly polished and processed without burrs, and the plastic seat part is made of PP material. The unique double-threaded design is easy to join and lock without loosening, avoiding the easy bonding of conventional dispensing needles. Certain liquids have the risk of corrosion, which greatly increases their service life. This needle can be lengthened or shortened according to the actual needs of users, such as 38mm, 30mm, 25mm, 8mm; the needle can also be bent at an angle, such as 45 degree, 90 degree.
Product Model
Parameter table: length unit mm. Note: 30G, 32G, 34G are fine models.
| Part Number | Inner Dia. (mm) | Outer Dia. (mm) |
|---|---|---|
| 14G | 1.55 | 1.82 |
| 15G | 1.45 | 1.81 |
| 16G | 1.25 | 1.61 |
| 17G | 1.12 | 1.48 |
| 18G | 0.9 | 1.26 |
| 19G | 0.7 | 1.06 |
| 20G | 0.6 | 0.9 |
| 21G | 0.51 | 0.81 |
| 22G | 0.41 | 0.71 |
| 23G | 0.33 | 0.63 |
| 25G | 0.26 | 0.51 |
| 26G | 0.23 | 0.45 |
| 27G | 0.19 | 0.41 |
| 30G | 0.13 | 0.31 |
| 32G | 0.11 | 0.23 |
| 34G | 0.06 | 0.19 |
