Product Description
XL Plastic Seat with Aluminum Stainless Steel Needle. On the basis of the conventional dispensing needle, the connection method of the needle base and the steel pipe is modified to aluminum insert rivet, which greatly improves the tensile resistance, and more importantly, prevents the conventional dispensing needle from being easily damaged, the risk of corrosion of certain liquids, thereby increasing the service life of the dispensing needle as a whole.
Product Model
Parameter table: length unit mm

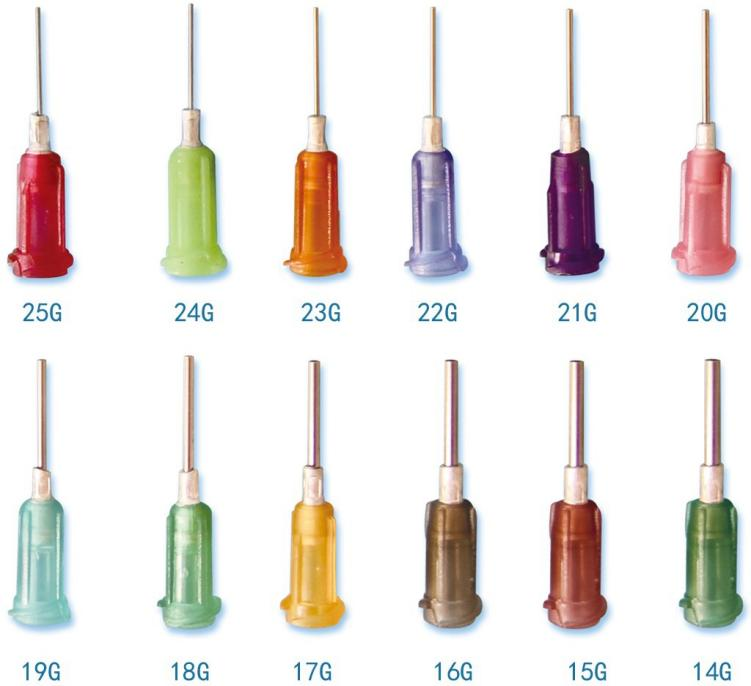

| Part Number | Inner Dia. (mm) | Outer Dia. (mm) |
|---|---|---|
| 14G | 1.55 | 1.82 |
| 15G | 1.45 | 1.81 |
| 16G | 1.25 | 1.61 |
| 17G | 1.12 | 1.48 |
| 18G | 0.9 | 1.26 |
| 19G | 0.7 | 1.06 |
| 20G | 0.6 | 0.9 |
| 21G | 0.51 | 0.81 |
| 22G | 0.41 | 0.71 |
| 23G | 0.33 | 0.63 |
| 24G | 0.3 | 0.55 |
| 25G | 0.26 | 0.51 |
