Product Description
Stainless Steel Single Tube Point Glue Needle Head.
High-precision stainless steel needles, 1/4, 1/2 and 1 inch long (about 6.5mm, 13mm, and 25mm).
Polished inside and outside without burrs, strong corrosion-resistance, heavy load resistance, silver-plated brass needle seat.

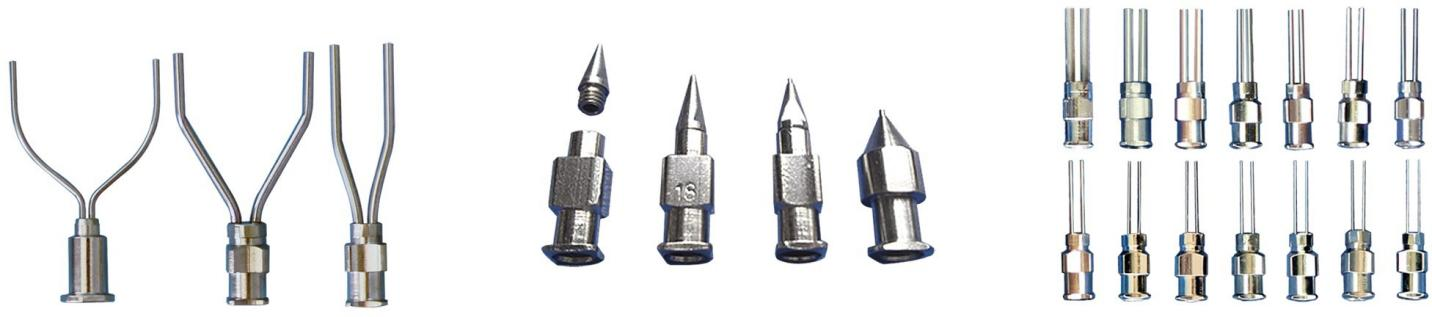

YY undertakes custom-made processing of various non-standard needles: lengthened, angled, pointed mouth, multi-tube needles.

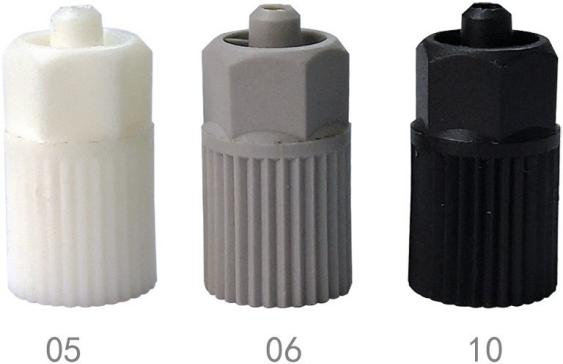

4、The adapter has a thread directly connected to the needle, and the output size can be changed through the needle.
Product Model
Parameter table: length unit mm

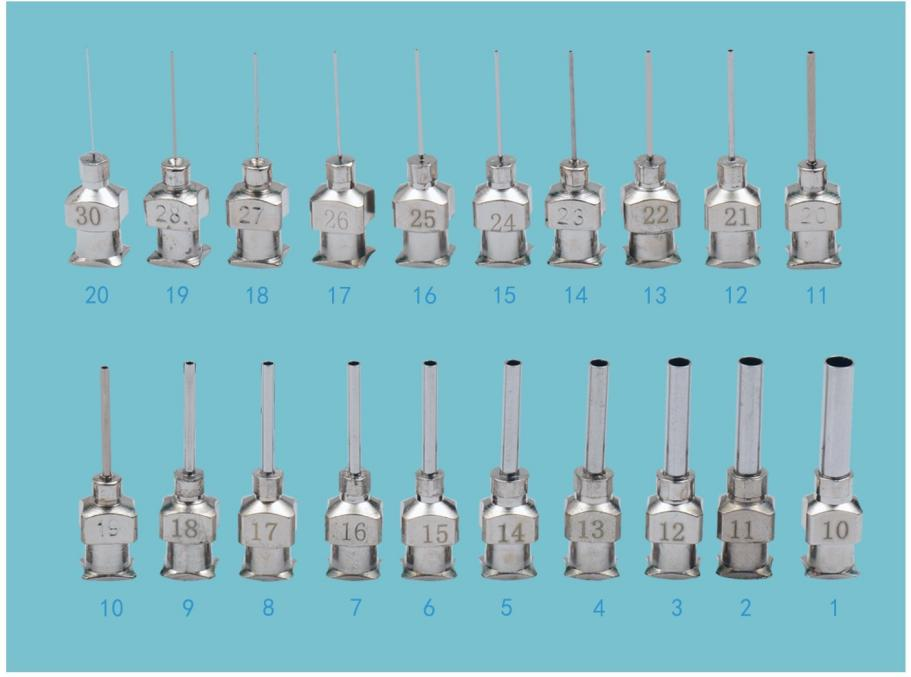

| No. | Part Number | Length (mm) | Inner Dia. (mm) | Outer Dia. (mm) |
|---|---|---|---|---|
| 1 | 10G | 13 | 2.7 | 3.43 |
| 2 | 11G | 13 | 2.64 | 3.05 |
| 3 | 12G | 13 | 2.4 | 2.75 |
| 4 | 13G | 13 | 1.99 | 2.41 |
| 5 | 14G | 13 | 1.69 | 2.11 |
| 6 | 15G | 13 | 1.45 | 1.81 |
| 7 | 16G | 13 | 1.25 | 1.61 |
| 8 | 17G | 13 | 1.12 | 1.48 |
| 9 | 18G | 13 | 0.9 | 1.26 |
| 10 | 19G | 13 | 0.7 | 1.06 |
| 11 | 20G | 13 | 0.6 | 0.9 |
| 12 | 21G | 13 | 0.51 | 0.81 |
| 13 | 22G | 13 | 0.41 | 0.71 |
| 14 | 23G | 13 | 0.33 | 0.63 |
| 15 | 24G | 13 | 0.3 | 0.55 |
| 16 | 25G | 13 | 0.26 | 0.51 |
| 17 | 26G | 13 | 0.23 | 0.45 |
| 18 | 27G | 13 | 0.19 | 0.41 |
| 19 | 28G | 13 | 0.17 | 0.35 |
| 20 | 30G | 13 | 0.13 | 0.31 |
